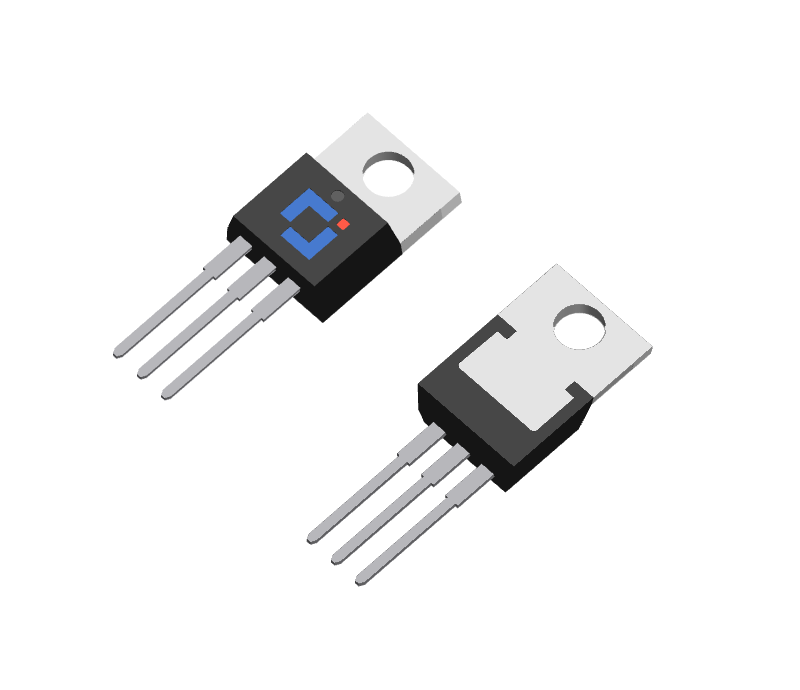

Nch 650V 7A, TO-220-3L, Planar Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJP07N65M1 | Active | No | 650 | ±30 | 7 | 3.1 | 1000 | - | - | - | TO-220-3L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJP07N65M1 | TO-220-3L | - | 07N65M1 | Tube,50/tube | NA |
