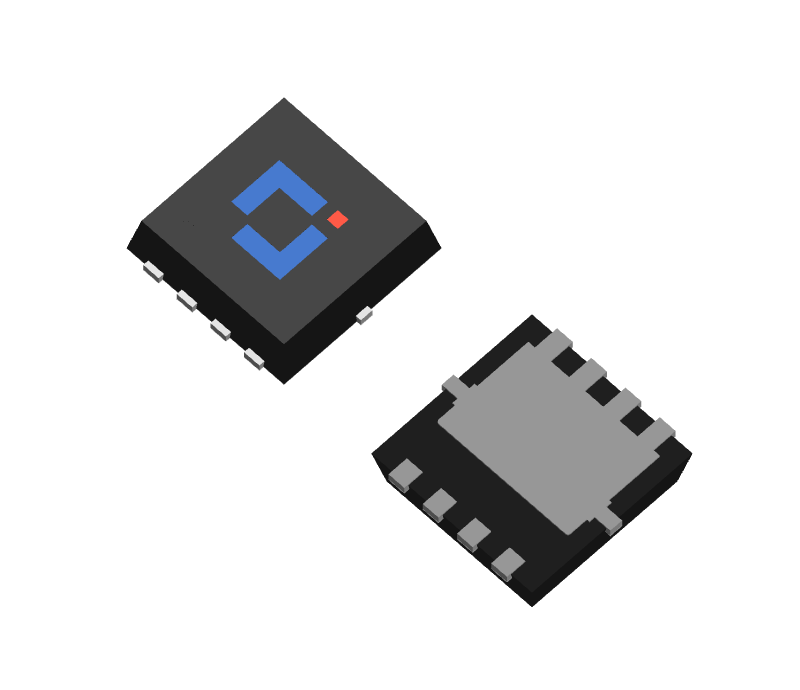

Nch 30V 90A, PDFNWB3.3x3.3-8L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAB2R8SN03AL | Active | No | 30 | ±20 | 90 | 1.1~1.9 | 2.4 | 2.8 | 2.9 | 3.5 | PDFNWB3.3x3.3-8L |
| Part Number | Package Type | Component Weight(mg) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJAB2R8SN03AL | PDFNWB3.3x3.3-8L | 20.6 | CJAB2R8SN03AL | Tape&Reel:5Kpcs/Reel | MSL3 |
